In Week 11 studio class, after the discussion with our tutors, me and my group mate Michael and Gordon decided a few things that we have to develop. I am assigned to fix the problems of the model in 3ds Max, and pass the individual 3ds files to Michael, so that he can export these elements into crysis earlier; Gordon is in charge with the environment development.
Here are some captures during modifying the model in 3ds Max.
Internal Stairs in progress:
Level 2 platfrom in progress
Railing for level 2 platfrom in progress

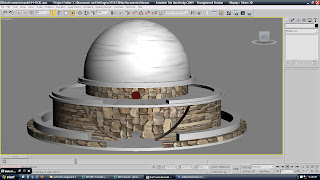

Level 2 Entrance in progress
External Wall edit in progress

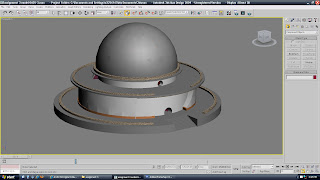

Stairs at the base in progress

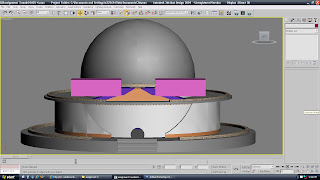

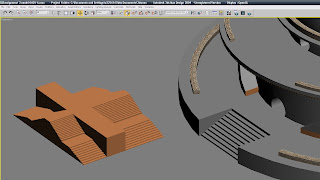

Pyramid stairs in progress
Internal Curve Wall in progress

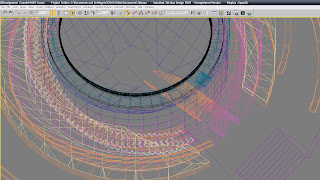

Tunnel for entering the hall and stairs
Here are some captures during modifying the model in 3ds Max.
Internal Stairs in progress:
Level 2 platfrom in progress
Railing for level 2 platfrom in progress
Level 2 Entrance in progress
External Wall edit in progress
Stairs at the base in progress
Pyramid stairs in progress
Internal Curve Wall in progress
Tunnel for entering the hall and stairs
Saturday, May 9, 2009
Assignment 2 Contribution
- Rebuild the Cenotaph model in 3Ds Max
- Apply material in 3Ds Max
- Model the light Feature (SUN feature) in 3Ds Max
- Import the model to Crysis Editor from 3Ds Max
- Create and arrange the hedges on Centaph in Crysis
- Create and apply material for Cenotaph in Crysis
- Final Video Editing
- Update the Team Blog
Wednesday, May 6, 2009
Challenges during the design process
Challenges during the design process
We have faced many troubles and frustrations during the whole project development, including the technical problems and also the collaboration; yet they all have been solved and finally we get our model done quite well. It is necessary to record the challenges or faults, as they can remind us not to let the mistakes happened again, also keep a record of our design process.
1. Collaboration with ‘New’ team member
Collaborate with someone never work together before or even totally stranger, is always happens in the real world. Our team members in this studio were picked randomly by choosing number tickets from a ‘Hat’, which is a really good experience that I can work with someone that I never work together before, and learn how to communicate and expressing myself. I think our team are working a bit harder than the other group, as Gordon – one of our team members- is living in Perth, so we cannot meet up quite often and only rely on phone or e-mail. Yet Gordon is a really good partner to work with as he is responsible and smart, so the distance does not make our process too difficult. And the other group mates Joanne and Michael, they are also helpful and funny, I had so much fun to work with them. We assigned the work evenly according to our strengths, which let our design process smoother and efficiently.
2. Building the model
We have the most challenge on building the model as we do not have the accurate measurement or any detail about the Cenotaph. To get the nearest result, Joanne built the model in ArchiCAD by the following the scale of the imported section of Cenotaph picture; yet it seems not looking very good after we imported it into 3Ds Max, so I rebuilt the model again in 3Ds Max by using Joanne’s Model as a reference, and add more detail to it, then the model looks quite well and achieved the sense of elegant.
3. Import from 3Ds Max to Crysis
Micheal and I spent nearly two days for importing the model from 3Ds Max to Crysis and we were quite frustrated because somehow it did not work well.
The first challenge is the SDK plug in does not support 3Ds Max 2009 which I used to built the model; so I have to
C:\Program files\Electronic Arts\Crytek\Crysis\Game\Objects
- Group all objects and Name it the same name you just saved it as
- Select the whole object and go to Utilities on the left hand side tool bar, choose the cry engine exporter
- add selected
- Choose ‘Export to Geometry (*.cgf)”
- Then click ‘Export Nodes’ to
C:\Program files\Electronic Arts\Crytek\Crysis\Game\Objects
- Go to objects in your roll over menu (right hand side)
- Select Brush
- Your new object you just exported should be in the list
- drag it into your terrain
However, when we try to import the model to crysis, we found that the material I made in 3Ds Max does not work in crysis editor; and also some elements does not show in the editor correctly because of too many vertices. So I spit the model into parts according to their materials, and do the steps above again.
We have faced many troubles and frustrations during the whole project development, including the technical problems and also the collaboration; yet they all have been solved and finally we get our model done quite well. It is necessary to record the challenges or faults, as they can remind us not to let the mistakes happened again, also keep a record of our design process.
1. Collaboration with ‘New’ team member
Collaborate with someone never work together before or even totally stranger, is always happens in the real world. Our team members in this studio were picked randomly by choosing number tickets from a ‘Hat’, which is a really good experience that I can work with someone that I never work together before, and learn how to communicate and expressing myself. I think our team are working a bit harder than the other group, as Gordon – one of our team members- is living in Perth, so we cannot meet up quite often and only rely on phone or e-mail. Yet Gordon is a really good partner to work with as he is responsible and smart, so the distance does not make our process too difficult. And the other group mates Joanne and Michael, they are also helpful and funny, I had so much fun to work with them. We assigned the work evenly according to our strengths, which let our design process smoother and efficiently.
2. Building the model
We have the most challenge on building the model as we do not have the accurate measurement or any detail about the Cenotaph. To get the nearest result, Joanne built the model in ArchiCAD by the following the scale of the imported section of Cenotaph picture; yet it seems not looking very good after we imported it into 3Ds Max, so I rebuilt the model again in 3Ds Max by using Joanne’s Model as a reference, and add more detail to it, then the model looks quite well and achieved the sense of elegant.
3. Import from 3Ds Max to Crysis
Micheal and I spent nearly two days for importing the model from 3Ds Max to Crysis and we were quite frustrated because somehow it did not work well.
The first challenge is the SDK plug in does not support 3Ds Max 2009 which I used to built the model; so I have to
- export the model from .max to .3ds format in 3Ds Max 2009
- Then import the .3ds file to 3Ds Max 2008
- Use SDK plug in to save the model as .cgf format
C:\Program files\Electronic Arts\Crytek\Crysis\Game\Objects
- Group all objects and Name it the same name you just saved it as
- Select the whole object and go to Utilities on the left hand side tool bar, choose the cry engine exporter
- add selected
- Choose ‘Export to Geometry (*.cgf)”
- Then click ‘Export Nodes’ to
C:\Program files\Electronic Arts\Crytek\Crysis\Game\Objects
- Import to crysis by the following steps:
- Go to objects in your roll over menu (right hand side)
- Select Brush
- Your new object you just exported should be in the list
- drag it into your terrain
However, when we try to import the model to crysis, we found that the material I made in 3Ds Max does not work in crysis editor; and also some elements does not show in the editor correctly because of too many vertices. So I spit the model into parts according to their materials, and do the steps above again.
Hedges
In the orginal design there are some hedges surrounding each level of Cenotaph. Firstly, I made the hedges in 3Ds Max, however it cannot be imported into Crysis because of too many vertices. So I used the tree in GeomEntities in Crysis Editor, clone and rotate each of them to make them fit the edge of the slabs. And I also double the layer for each hedge, in order to create a rich density for the hedges to match with the original design.
ps. The reason that I didn't use the trees in vegetation is, because the trees in vegetation category are only allow to place on the ground,which cannot fulfill our needs.
Hedges in 3Ds Max
The material of the hedges lost after imported to Crysis from 3Ds Max
In Crysis Editor, the Geom Entities Under thr roller bar
Snap shot of how I clone and rotate the hedges in Crysis

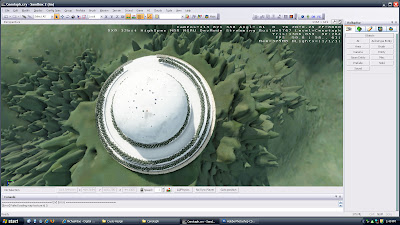

The top view of Cenotaph after applying the hedges
ps. The reason that I didn't use the trees in vegetation is, because the trees in vegetation category are only allow to place on the ground,which cannot fulfill our needs.
Hedges in 3Ds Max
The material of the hedges lost after imported to Crysis from 3Ds Max
In Crysis Editor, the Geom Entities Under thr roller bar
Snap shot of how I clone and rotate the hedges in Crysis
The top view of Cenotaph after applying the hedges
